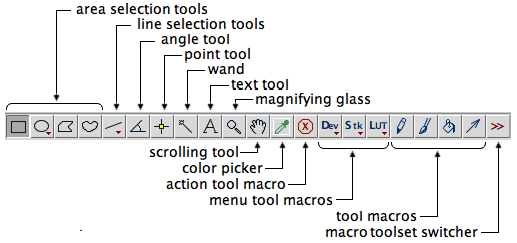

Tools

Area Selection Tools
Use these tools to create area selections that will be operated on separately from the rest of the image. The contents of an area selection can be copied to the internal clipboard, cleared (to white), filled with the current drawing color, outlined (using Edit>Draw), filtered, or measured. Use the backspace key as a shortcut for Edit>Clear. Use Image>Colors>Color Picker to set the drawing color. Double click on any line tool to change the line width used by Edit>Draw. Use the arrow keys to "nudge" a selection one pixel at a time in any direction.
Rectangle
When creating the selection, drag with the shift key down to constrain it to a square. Use the small "handle" in the lower right corner to resize. Use the arrow keys with the alt key held down to change the width or height one pixel at a time. As a selection is created or resized, its location, width and height are displayed in the status bar. Hold the alt key down when moving or resizing to force the location and size to be displayed in pixels.
Oval
Creates an elliptical selection. Holding the alt key down forces the selection to be circular. Use the arrow keys with the alt key pressed to change the width or height. As the selection is created or resized, its width and height are displayed in the status bar.
Polygon
Creates irregularly shaped selections defined by a series of line segments. To create the selection, click repeatedly with the mouse to create line segments. When finished, click in the small box at the starting point (or double-click), and ImageJ automatically draws the last segment.
The points that define a polygon selection can be moved or deleted, and new points can be added. To delete a point, click on it with the alt key down. To add a point, click on an existing point with the shift key down.
Freehand
The freehand tool lets you create irregularly shaped selections by dragging with the mouse.
Wand Tool
Creates a selection by tracing objects of uniform color or thresholded objects. To trace an object, either click inside near the right edge, or outside to the left of the object. To visualize what happens, imagine a turtle that starts moving to the right from where you click looking for an edge. Once it finds the edge, it follows it until it returns to the starting point. Note that the wand tool may not reliably trace some objects, especially one pixel wide lines, unless they are thresholded (highlighted in red) using the Image>Adjust>Threshold tool. Use the WandAutoMeasureTool macro to outline and automatically measure objects.
Composite Selections
Hold the shift key down when creating an area selection and it will be added to the existing selection. Hold down the alt key and it will be subracted from the existing selection. To add a non-square rectangle or ellipse, release the shift key after you start adding the selection.

Line Selection Tools
Use these tools to create line selections. Use Analyze>Measure to calculate the length of a line selection. Use Edit>Draw to permanently draw the line on the image. Change the drawing color by clicking in the Image>Colors>Color Picker window. Double click on any line tool to specify the line width. Use the arrow keys to "nudge" a line selection one pixel at a time.

Straight Line
Use this tool to create a straight line selection. Holding the alt key down forces the line to be horizontal or vertical. To spatially calibrate an image, create a line selection corresponding to a known distance (e.g. 10mm), then enter that distance in the Analyze>Set Scale dialog box.
Segmented Line
Create a segmented line selection by repeatedly clicking with the mouse. Each click will define a new line segment. Double-click when finished, or click in the small box at the starting point.
The points that define a segmented line selection can be moved or deleted, and new points can be added. To delete a point, click on it with the alt key down. To add a point, click on an existing point with the shift key down.
Freehand Line
Select this tool and drag with the mouse to create a freehand line selection.

Point Selection Tool
Use this tool to create a point selection, to count objects or to record coordinates. Click once to create a single point selection. Shift-click to add more points. Click on a point and drag to move it. Alt-click on a point to delete it. Alt-click and drag with the rectangular or oval selection tool to delete multiple points. Double-click on the point tool icon to display the following configuration dialog box.
If Auto-Measure is checked, clicking on an object in the image records its location and intensity and, if Mark Width is greater than zero, draws a mark in the current foreground color. The marks modify the image so it may be wise to work with a copy. Set the mark width to zero to disable marking. Note that color marks are only available with color images or grayscale images that have been converted to RGB. If Auto-Next Slice is checked, ImageJ will advance to the next stack slice after each measurement is recorded.
Use the Edit>Draw command to permanently draw a circular marker on the image at the location of each point. The makers are drawn in the current foreground color using a diameter of Mark Width.
Text Tool
Use this tool to add text to images. It creates a rectangular selection containing one or more lines of text. Use the keyboard to add characters to the text and the backspace key to delete characters. Use Edit>Draw to permanently draw the text on the image. Use Edit>Options>Fonts, or double-click on the text tool, to specify the typeface, size and style.
Magnifying Glass
Click on the image with this tool to zoom in. Alt-click (or right-click) to zoom out. The current magnification is shown in the image's title bar. Double-click on the magnifying glass icon to revert to the image's original magnification. There are 21 possible magnification levels: 3.1, 4.2, 6.3, 8.3, 12.5, 16.7, 25, 33.3, 50, 75, 100, 150, 200, 300, 400, 600, 800, 1200, 1600, 2400 and 3200 percent. When zooming in, press the shift key to prevent the window from being enlarged.
Scrolling Tool
Allows you to scroll through an image that is larger than its window. When using other tools (except the text tool), you can temporarily switch to this tool by holding down the space bar.
Color Picker
Sets the foreground drawing color by "picking up" colors from images. The color of this tool's icon changes to match the drawing color. Colors can "picked up" from the Image>Colors>Color Picker window using any tool. Alt-click in the Color Picker to change the background color. Double-click on this tool to display the Color Picker. The icon for this tool is drawn in the current foreground color and the frame around it is drawn in the current background color.
